Home / Products / Feeding Equipment / ZSW/GZD/GZG Vibrating Feeder

Feeding Equipment

Model Max. Feed size
（mm）		 Capacity
(t/h)		 Eccentric shaft rotate (r/min) Motor power
 (kw)		 Dimension
(L×W×H)
(mm)		 Weight
(t)
GZD-300×90 425 40-100 2×2.2 3307×1430×1450 2.55
GZD-380×96 550 80-150 2×(3-3.7) 3870×1860×1190 3.24
2GZD-380×96 550 80-160 2×5.5 3870×1500×1200 3.8
GZZ-490×110 630 150-250 500-800 18.5 4900×1660×1420 5
GZZ-600×120 750 190-280 500-900 22 5950×1760×1420 6.6
ZSW-380×96 550 80-150 500-720 11 3882×1700×1350 4.36
ZSW-490×110 630 120-280 500-800 15 4957×1850×1350 5.3
ZSW-590×110 700 200-350 500-800 22 6000×1840×1400 6.3
ZSW-600×130 750 400-560 500-800 22 6082×2000×1450 7.8
ZSW/GZD/GZG Vibrating Feeder
  • ZSW/GZD/GZG Vibrating Feeder
  • ZSW/GZD/GZG Vibrating Feeder

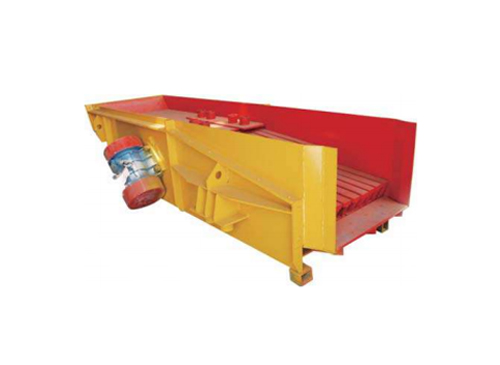

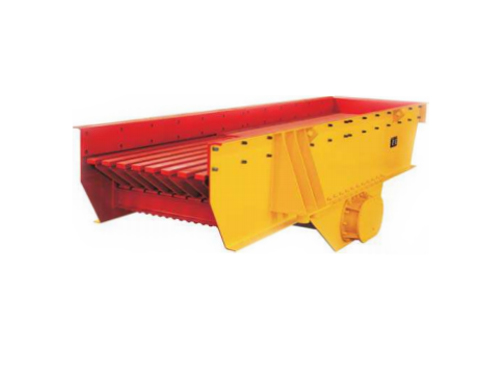

ZSW/GZD/GZG Vibrating Feeder

Vibrating feeder is a kind of equipment widely used in mining, metallurgy, building materials and other industries. It is mainly used to provide continuous and uniform material supply to the crusher. The grid it is equipped with can perform preliminary screening of the material and effectively remove clay and impurities, thereby ensuring the efficient operation of the crushing equipment and avoiding damage or excessive wear of the equipment due to unsuitable components in the material. According to different working environments and production requirements, vibrating feeders provide three different models of GZD series, ZSW series and GZZ series to meet the needs of different production scales and working conditions.
Product Advantage
1. Strong structure, heavy-duty, and durable
2. Removable and adjustable grizzly bars, feeding evenly
3. Closed oil-bath lubrication, Prevent dust pollution
4. Adjustable vibration, speed can be adjusted by adding a  frequency converter
5. Easy maintenance, low consumption, long life
