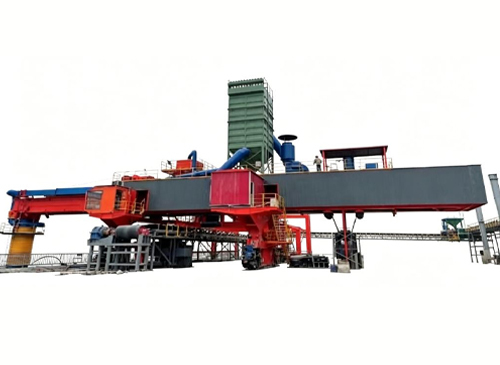

Arc-Swing Shiploader

The arc-swing shiploader is designed for inland terminals with limited site space, and is used for loading pellet ore, sand and gravel, and other materials onto vessels of 500 to 5,000 DWT. The equipment uses an arc-swinging structure, with the boom's swing motion covering the loading area.

Key features:
·Maximum loading radius of 17–26 meters and swing angle of -65° to +65°, providing wide loading coverage
·Throughput capacity ranging from 350 to 1,000 t/h across the model range
·P43/P50 rail specifications with a maximum wheel load of 22–28 tons, supporting stable operation
·Adaptable to water level differences of ±3 to 4 meters, accommodating seasonal fluctuations in inland waterways
·Compact structural layout suited to terminals with limited site space

Through its swinging boom structure, this series covers the loading area within limited site space and is suitable for medium-batch loading of pellet ore, sand and gravel, and similar materials. It accommodates the operating condition changes brought about by fluctuating water levels at inland terminals.
