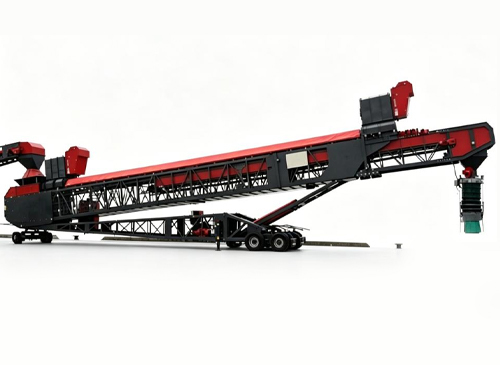

Tire-Mounted Mobile Shiploader

The tire-mounted mobile shiploader is designed for inland barges from 100 to 5,000 DWT, and is used at sand and gravel yards, temporary bulk terminals, and for loading onto pontoon vessels. The equipment travels on solid tire hydraulic wheels, requiring no rail foundation, which allows flexible relocation between sites.

Key features:
·Overall length of 33–58 meters, covering different loading distance requirements
·Discharge height of 3.8–21.1 meters, adapting to varying deck heights of different vessel types
·Belt width of 650–1,000mm with capacity ranging from 200 to 1,800 t/h
·Solid tire hydraulic travel system, enabling quick movement between different work locations
·Overall weight of 28–68 tons, with a clear model tier structure for selection based on site conditions

This series does not require a fixed rail foundation, making it suitable for inland terminals with limited site conditions or scattered work locations. It can be relocated with relative ease, meeting small to medium batch loading needs for materials such as sand, gravel, and grain.
