Home / Products / Grinding Equipment / HGM Extra-fine Grinding Mill

Grinding Equipment

Model HGM80 HGM90L HGM100L-II HGM125L HGM168L
HGM100P
Ring dia.(mm) 800 900 1000 1250 1680
Ring no.(layer) 3 3-4 4 4 4
Roller no.(pcs) 18-21 24-29 28-36 30-40 30-44
Mainshaft speed(r/min) 230-240 200-220 180-200 135-155 120-130
Input size ≤20 ≤20 ≤20 ≤20 ≤20
Finished size May-74 May-74 May-74 100-6 100-9
(um/mesh) (200-2500) (200-2500) (200-2500) (150-2000) (150-1500)
Capacity(tph) 0.5-5.5 0.8-6.5 1.2-10 2.5-20 5-45
1.2-11
Dimension(m) 15.1*4.2*7.3 18.4*3.9*7.8 22.7*3.6*8.5 27.3*4.2*9.9 31.7*7.7*12.6
Main power of the grinding mill 75 2*45 132-150 185-200 315
Classifier power 18.5 18.5-30 30-37 75 132
Blower power 45 55 75 110 200-220
Crusher power 18.5 18.5 18.5 45 45
Bucket elevator power 3 3 4 4 7.5
Feeder motor power 1.5 1.5 1.5 1.5 2.2
Discharge valve power 2*0.75 1.1 1.1 1.5 2*1.5
Air compressor motor power 11 15 22 37 55

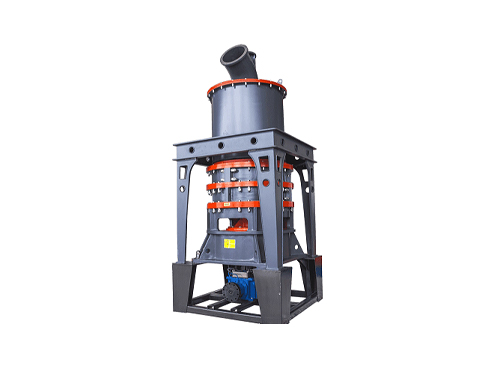

HGM Extra-fine Grinding Mill
  • HGM Extra-fine Grinding Mill

HGM Extra-fine Grinding Mill

HGM Series Powder Ginding Mill is the equipment specializing in producing fine and superfine powder of no-inflammable, non explosive and brittle materials with Moh's hardness under 6, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite,p yrophyllite, vermiculite, sepiolite, attapulgite, zeolite, diatomaceous earth, barite, gypsum, alunite, graphite, fluorite, phosphate rock, potassium ore, pumice, fly ash etc,.totally more than 100 kinds of materials.
Product Advantage
1. High efficiency
2. Long lifecycle of spare parts
3. High safety and reliability
4. High fitness, flexible adjustment
5. Environment-friendly
6. Advanced intelligent speed control device
Note: The capacity is based on the domestic CaCO3 powder factory's feedback.
