Cone Crusher

CS Series

Maximum motor

(kw)

Max.feed size
(mm)
When the crusher is adjusted to the minimum discharge port processing capacity T/H
19 22 25 29 32 35 38 41 44 48 51 54 60 64 70 76 83
CS100

75-90  EC 240 85 92-115 101-158 107-168 114-143 121
C 200 70 76-95 82-128 90-112 96
CS200 132-160  EC 360 126 138-173 147-230 156-293 165-310 174-327 183-344 196-306 205-256 214
C 300 108 116-145 127-199 135-254 144-270 152-285 161-301 169-264 180
MC 235 91 98-123 106-166 116-218 124-232 131-246 139-261 147-275 154-241 165
CS300 200-250  EC 450 267 282-353 298-446 313-563 334-601 349-524 365-456
C 400 225 239-299 254-381 269-484 284-511 298-448 318-398 333
MC 300 195 214-267 228-342 242-435 256-461 270-486 284-426 303-378 317
CS500 315  EC 560 349 368-460 392-588 410-718 428-856 465-929 489-978 525-1050 562-9830 604
C 500 318 336-420 353-618 376-753 394-788 411-823 446-892 469-822 504-631



CH Series Maximum motor(kw) Max.feed size
(mm)
When the crusher is adjusted to the minimum discharge port processing capacity T/H
4 6 8 10 13 16 19 22 25 32 38 44 51 57 64 70
CH100

75-90 EC 135 46 50-85 54-92 58-99 62-105 66-112 76-128
C 90 43-53 46-89 50-96 54-103 57-110 61-118 70
M 65 36-44 38-74 41-80 45-76 48-59
MF 50 36 38-67 40-71 44-68 47-53
F 38 27-34 29-50 31-54 32-57 35-48 38
EF 29 30-40 with 80% finer than 4.5-5.5 mm
CH200 132-160 EC 185 69-108 75-150 80-161 86-171 91-182 104-208 115-208
C 145 66-131 71-142 76-152 81-162 86-173 98-197 109-150
MC 115 57 62-140 67-151 72-162 77-173 82-184 93-145
M 90 64-84 69-131 75-142 80-152 86-162 91-154 104
MF 75 61 65-106 70-115 76-124 81-126 87-114 92
F 50 48-78 51-83 54-88 59-96 63-103 68-105 72-95 77
EF 35 70-90 with 80 % finer than 5-5.6 mm
CH300 200-250 EC 215 114-200 122-276 131-294 139-313 159-357 175-395 192-384
C 175 101 109-218 117-292 125-312 133-332 151-378 167-335 183-229
MC 140 97-122 105-262 113-282 120-301 128-320 146-328 161-242
M 110 117-187 126-278 136-298 145-318 154-339 176-281 194
MF 85 114 124-227 134-245 144-263 153-281 163-299 186-248
F 70 90-135 96-176 104-191 112-206 120-221 129-236 137-251 156-208
EF 38 100-125 with 80 %6 finer than6-7.5 mm
CH500 315 EC 275 177 190-338 203-436 216-464 246-547 272-605 298-662 328-511
CX 245 174-194 187-374 200-488 212-519 242-592 268-654 293-521 323-359
C 215 171-190 184-367 196-480 209-510 238-582 263-643 288-512 317-353
MC 175 162-253 174-426 186-455 198-484 226-552 249-499 273-364
M 135 197-295 211-440 226-470 240-500 274-502 302-403
MF 115 192 207-369 222-396 237-423 252-450 287-451 318-363
F 85 195-304 210-328 225-352 241-376 256-400 292-401 323
EF 65 211-293 227-316 244-298 261-290

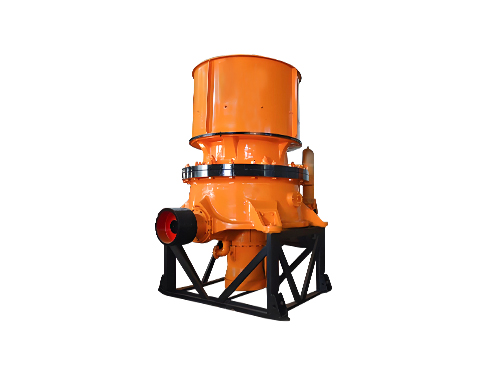

Single-cylinder Cone Crusher

Single-cylinder Cone Crusher

Product Advantage
1. Advanced design
2. All hydraulic operation
3. High reduction efficiency low consumption
4. Robust and reliable design for hard stone
5.Easy operation and maintenance
