Sand Making Machine

Model Max.feed size
(mm)
Capacity
(t/h)
Rotor speed (r/min) Motor power
(kw)
Dimension
(L×W×H)
(mm)
VSI8518 40 100-130 1400-1600 90*2 4140×2280×2425
VSI8522 40 100-150 1400-1600 110*2 4140×2280×2425
VSI9526 40 120-180 1200-1500 132*2 4560×2447×2778
VSI9531 40 120-200 1200-1500 160*2 4560×2447×2778
VSI1140 50 200-300 1100-1400 200*2 5000×2700×3300
VSI1145 50 200-350 1100-1400 220*2 5100×2700×3300
VSI1150 50 200-400 1100-1400 250*2 5100×2700×3300
VSI1263 60 400-550 1000-1200 315*2 5700×2980×4190

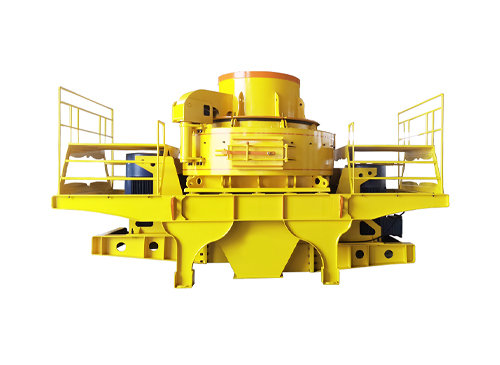

VSI Vertical Shaft Impact Crusher

VSI Vertical Shaft Impact Crusher

The VSI series sand making machine is an advanced sand making and shaping crushing equipment developed based on Metso technology. It is widely used in construction, industrial ores, metal ores and material recycling industries. The equipment can effectively crush medium-hard and super-hard materials, has a good sand-making effect, and is especially suitable for producing high-quality artificial sand, aggregates, etc. In terms of design, the VSI series sand making machine adopts a number of advanced technologies to ensure that it can still maintain stable and efficient production capacity in a complex working environment.
Product advantages
1. Equipped with complete safety protection devices and operating systems to ensure the safety and convenience of equipment operation
2. Core components such as bearings and motors are selected from internationally renowned brands to improve equipment stability and operational reliability
3. High-yield, fine-grained product shape to meet different production needs
4. Provide two different cavity types, which can be selected according to different material characteristics, to improve equipment adaptability
5. The equipment design is energy-saving and environmentally friendly, with low operating costs, meeting the needs of modern green production
