Home / Products / Crusher Equipment / Jaw Crusher / PE Jaw Crusher

Jaw Crusher

Model Feed opening size（mm） Max.feed size（mm） Discharge opening size （mm） Capacity（t/h） Eccentric shaft rotation（r/min） Motor power（kw） Weight（t）
PE-400×600 400×600 340 40-100 16-55 275 30 6.5
PE-500×750 500×750 425 50-100 32-80 275 55 10.3
PE-600×900 600×900 500 65-160 50-120 250 55-75 15.5
PE-750×1060 750×1060 630 80-140 100-180 250 110 28
PE-800×1060 800×1060 640 100-200 136-230 250 110 29
PE-870×1060 870×1060 660 200-260 190-336 250 110 30.5
PE-900×1200 900×1200 750 120-240 180-280 200 132 46.5
PE-1000×1200 1000×1200 850 220-340 320-350 200 132 47
PE-1200×1500 1200×1500 1000 150-300 300-500 180 200 79
PE-1500×1800 1500×1800 1200 220-350 450-1000 180 355 122
PEX-250×750 250×750 210 25-60 8-30 330 22 4.9
PEX-250×1000 250×1000 210 25-60 16-52 330 30-37 6.5
PEX-250×1200 250×1200 210 25-60 20-60 330 37 7.7
PEX-300×1300 300×1300 250 20-90 16-104 300 55 11
PEX-350×1200 350×1200 300 70-140 20-120 300 75 11.43

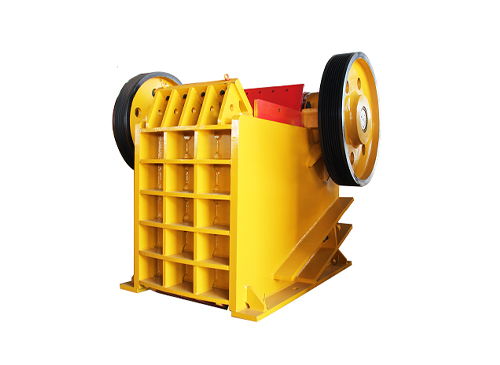

PE Jaw Crusher
  • PE Jaw Crusher

PE Jaw Crusher

PE series jaw crusher meets the national standards in terms of its specifications and parameters. The jaw Crushers are generally applied for primary crushing and broadly used for crushing all kinds of ores and stones with compression strength less than 320MPa in mining, metallurgy, building material, highway, railway, water conservation and chemical industries etc.
Product Advantage
1. The speed of the eccentric shaft is high, with large crushing capacity and high output.
2. Large ratio, even discharge particles
3. Big adjusting range of discharge opening size
4. Simple structure, high reliability, convenient maintenance
5. Equipment is energy-saving and directly reduces the production cost
6. Stable running, lower noise, less dust, and lower operating cost
